Solar you can see: SolarEdge on Nice / Elan and Control4

A solar contractor installs a solar system, commissions it and moves on. From then on it lives in the manufacturer's app, on a phone, behind its own login. The control system the family uses every day, with its touchscreens, remotes and keypads, knows nothing about it.

Even the solar app mostly reports kilowatts, and a kilowatt figure doesn't tell the homeowner much. What they actually want to know is different:

• What is it worth? A kilowatt-hour at noon and one at 6 pm are priced very differently on a time-of-use plan.

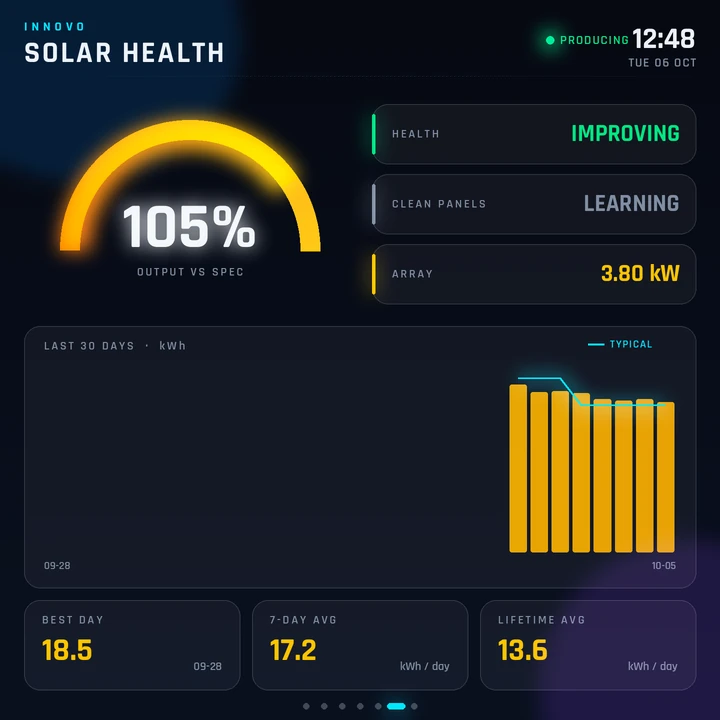

• Is it performing? Is the array delivering what it was specified to, and do the panels need cleaning?
• Is the battery doing its job? Is it charging from the sun and covering the expensive evening hours?
• Is anything wrong? Faults sit in an installer portal that the homeowner never opens.

Innovo built a SolarEdge integration for the Magic Cube. It reads the inverter, the meters and the battery directly on the home network, every ten seconds, over SolarEdge's local Modbus interface. It needs no cloud account and no third-party service, so it doesn't depend on the internet.

On top of that live data, the Magic Cube runs an energy model. It records what was produced, used, bought, sold, charged and discharged. It values each kilowatt-hour at the utility's time-of-use rate for that moment, and it learns how the array should perform at that site. Rate plans can be set on the Magic Cube or pushed from Nice / Elan or Control4.

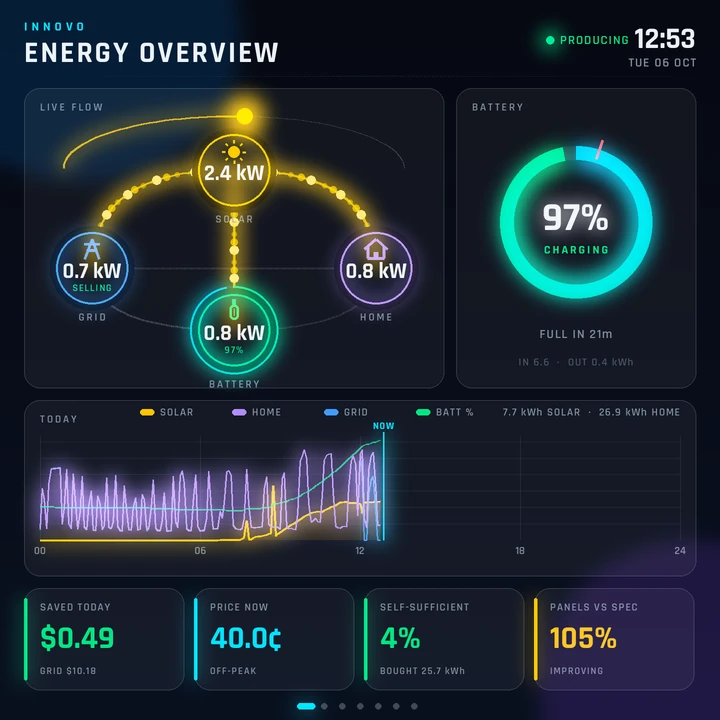

The Magic Cube then draws seven ready-made screens at touch-panel resolution and keeps them current. The control system only has to show them, so there is no custom graphics work on the dealer's side and the panels don't slow down.

The screens adapt to the equipment on site. A home with a battery and meters gets the full energy flow. A solar-only home without a meter gets solar-focused versions of each screen, with no empty gauges. Until a screen has enough data, a clear placeholder appears instead.

Innovo's reference home runs a SolarEdge SE3800H inverter with ten panels on power optimizers and an LG RESU 10H Prime battery. It is on a Southern California Edison time-of-use plan, so evening power costs far more than midday power.

Connecting the Magic Cube showed first that the system was not healthy. The battery had been reporting communication errors, so it was neither charging from the sun nor covering the evening peak. A meter fault followed.

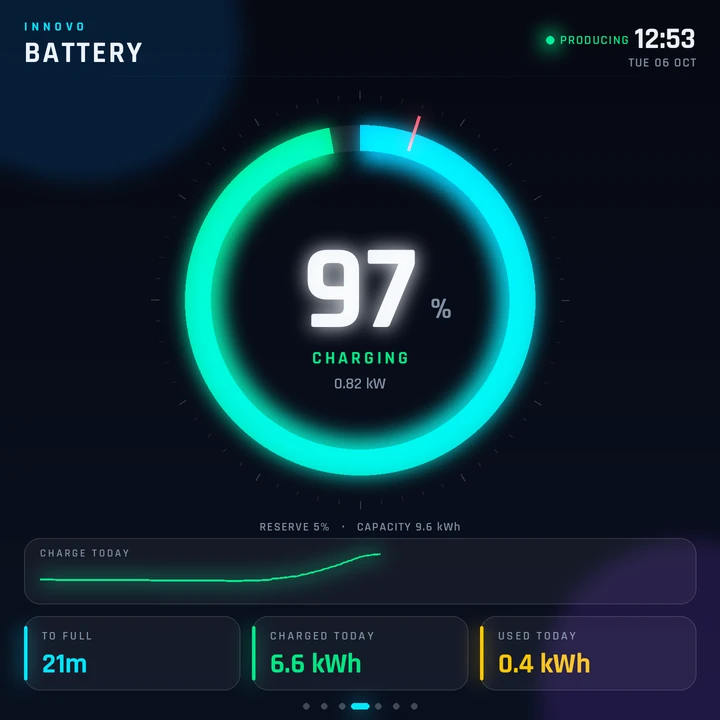

Because the Magic Cube talks to the inverter directly, it could read the inverter's own view of its communication bus. The bus was configured for a second battery and an extra meter that didn't exist. Once those ghost devices were removed, the errors cleared, the battery came back and started charging from the sun. The battery reserve was then lowered so that more of the stored energy covers the expensive peak hours.

The second home is the Canadian residence from Case Study 01. Its Magic Cube already brings radiant heating, Carrier climate, Hydrawise irrigation and motorized screens to Nice / Elan. In October 2026 the home's SolarEdge array was added: 30 × 400 W panels on an SE10000H inverter.

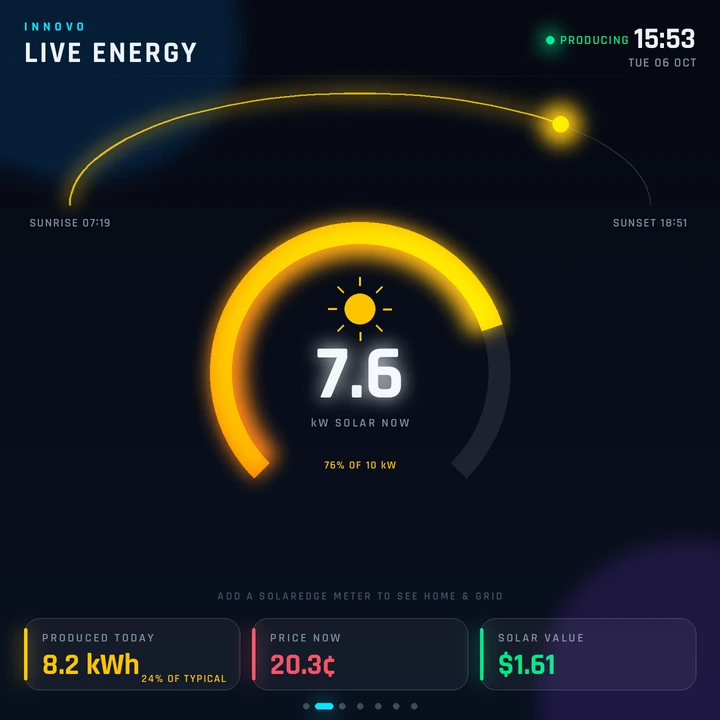

This is a solar-only system, with no battery and no consumption meter. The integration recognised that and switched to its solar-only screens automatically. The home's location and Ontario's time-of-use rates were set up, and the solar was valued from the first minute.

It was all done remotely in one afternoon, on the existing Magic Cube and under the existing Unlimited License. Nothing was added to the rack and nobody went to site.

For the homeowner

• Energy turns into knowledge. Not just how much the roof is producing, but what it is worth and whether it is performing.
• The same screens they already use. No new app and no new login.
• Better decisions at peak. The price now and the next change are on screen, so running the dishwasher at 3 pm instead of 6 pm becomes an easy choice.

For the dealer

Solar and storage are among the most expensive things in a modern home, and until now they sat outside the control system. With the Magic Cube they come into Nice / Elan and Control4 under the same Unlimited License as everything else the Magic Cube drives. That means no extra hardware, no graphics to design and nothing to maintain. The dealer can offer every solar homeowner a reason to call, and a visible, ongoing benefit from the system they bought.
