NOTE: As of April 1, the Magic Cube is no longer shipping with standard Wall Power Supply. It will ship standard with POE Adapter only. If you would like a wall adapter, please add it as separate accessory.

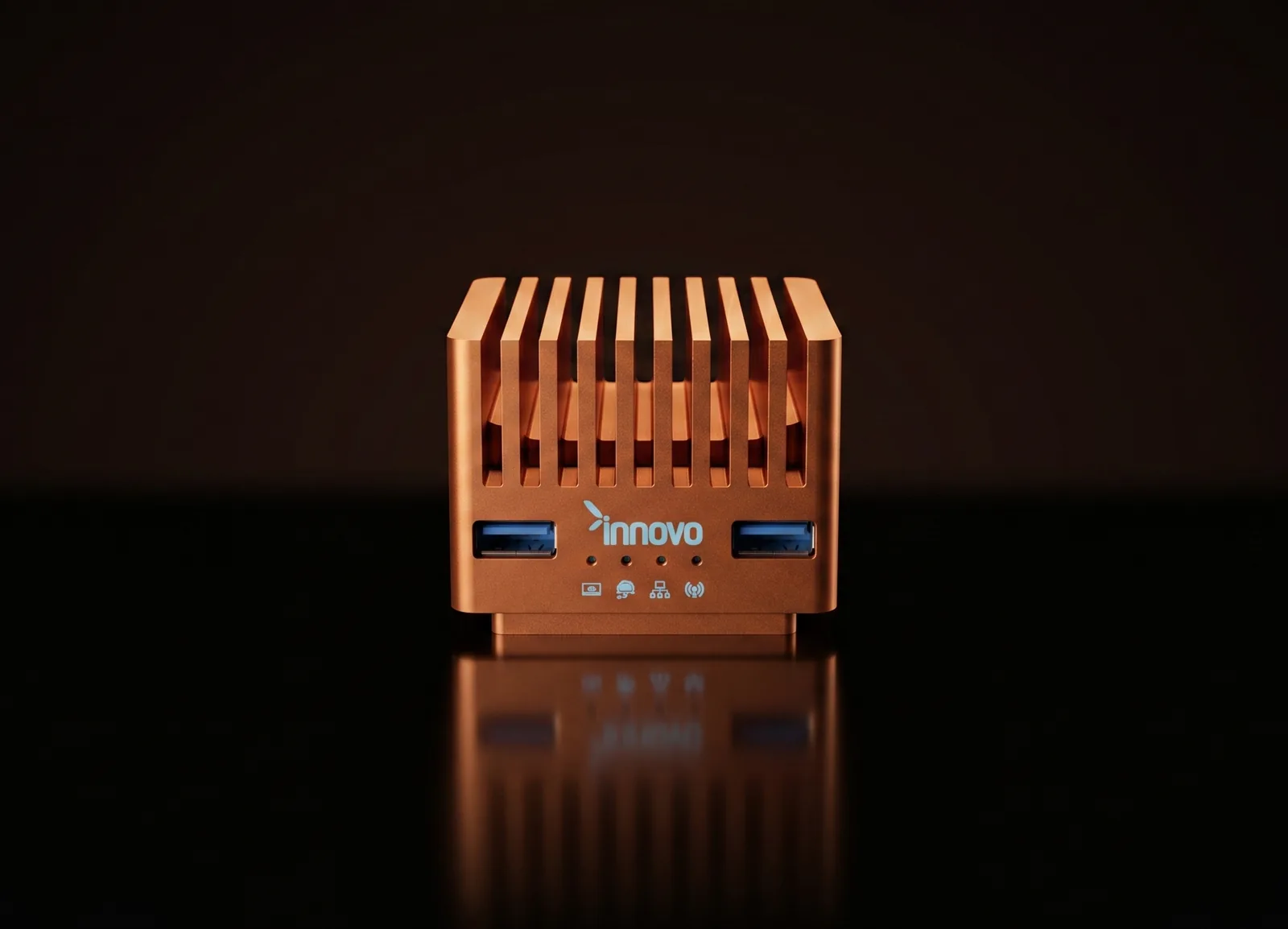

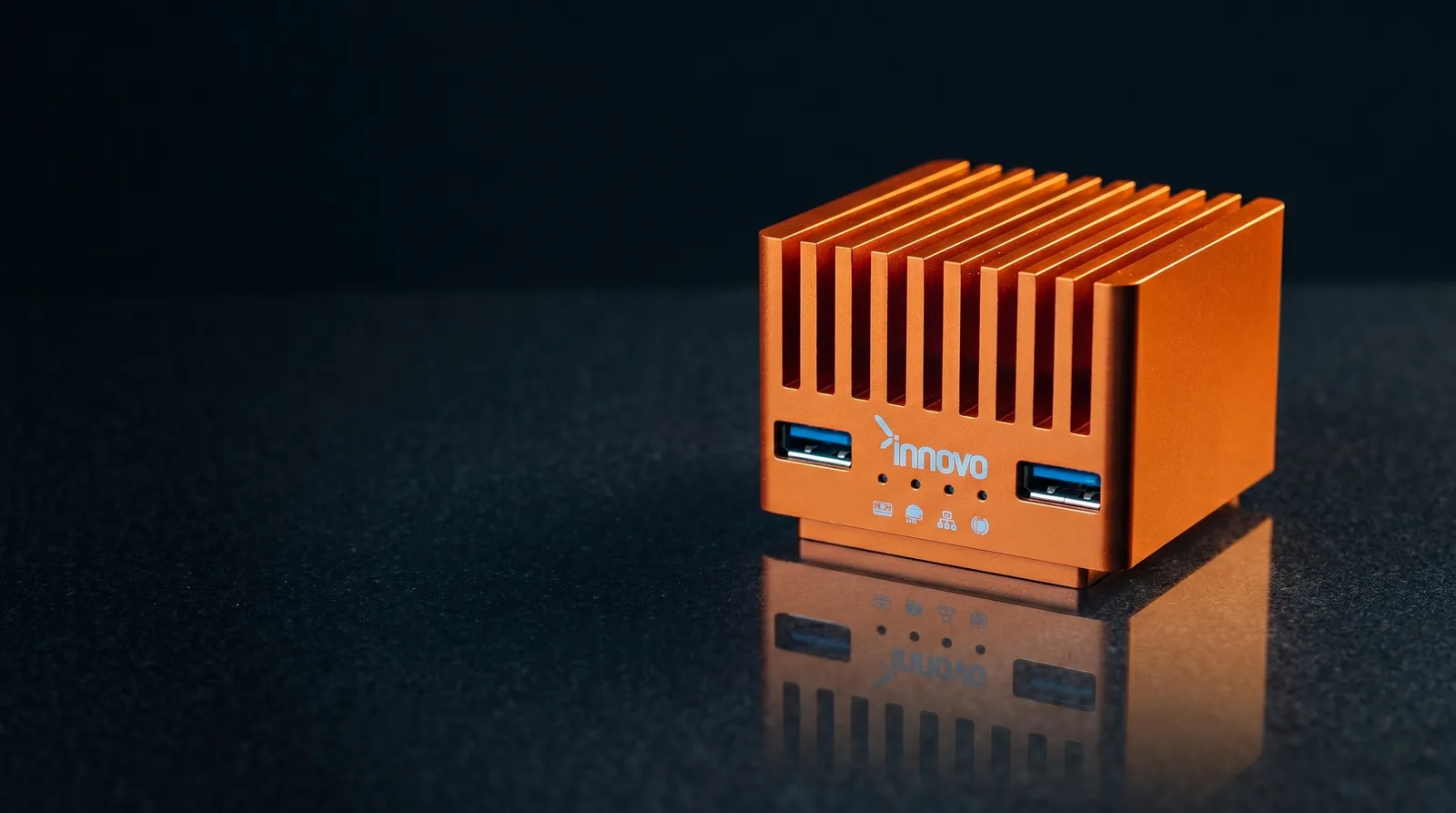

The Magic Cube Aura is a Professional Level robust device that uses real-time communications between Nice, Control 4 and (Coming Soon) Savant and hundreds of devices by providing a middleware hardware that translates commands from Nice to the devices.
It’s lighting fast and provides all the necessary technology to be able to control many devices around the home or business.
A Magic Cube can run multiple drivers and multiple instances of the same driver.
This version of the Magic Cube comes equipped with
2GB RAM
2.5GBPS Ethernet Connection
You can still add Zigbee and ZWave adapters to this unit. See Below for options.
Visit the Magic Cube Microsite
If you need more than 5 units, please reach out to sales@innovo.net with a PO.
| CPU | Model: Rockchip RK3568B2 Number of Cores: Quad-core ARM Cortex-A55 Frequency: 4 x Cortex-A55 up to 2.0GHz |
| GPU | Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile |
| VPU | 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder |
| NPU | Support 0.8T |
| Memory | RAM: 2GB LPDDR4X |
| Storage | MicroSD Slot x1: support UHS-I Flash: 32GB eMMC |

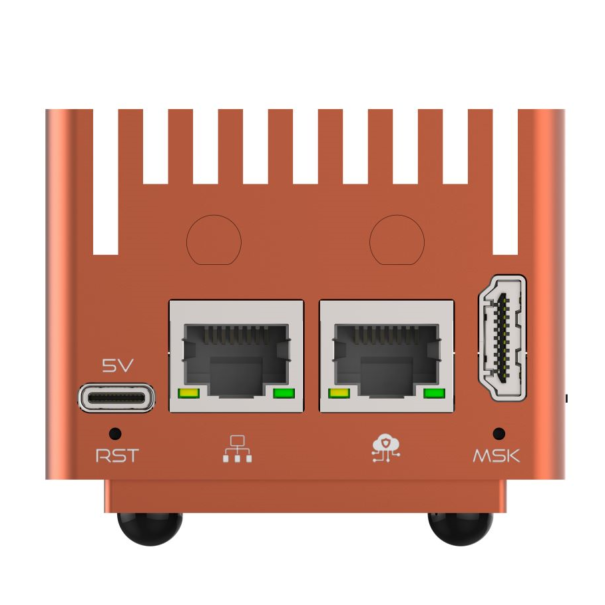

| Connectivity | Ethernet: PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip M.2 E-Key x1: PCIe2.1 x1, USB 2.0 x1 |
| Video Output | HDMI: support HDMI1.4 and HDMI2.0 operation support up to 10 bits Deep Color modes support up to 1080p@120Hz and 4096×2304@60Hz support 3-D video formats |
| USB | USB 3.0 Host x2: USB 3.2 Gen 1 Type-A USB-C x1: Power Only(5V) |
| Pin-header | Debug: Debug UART x1, 3 Pin 2.54mm header, 3.3V level, 1500000bps |
| LED | SYS LED(Red) x1 WAN LED(Green) x1 LAN1 LED(Green) x1 LAN2 LED(Green) x1 |
| Button | MASK Button x1 |
| Others | RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Working Temperature: 0℃ to 70℃ |
| Power | USB-C, 5V input |
One Lighting Driver can Install all these devices:
Axis
Belkin WeMo
Big Ass Fans
Bond
Broadlink
Control4
deCONZ
Elgato Light
Fibaro
Govee
Group
HomeKit Bridge
IKEA TRADFRI
Insteon
KNX
Leviton Decora Wi-Fi
LIFX
Lightwave
LimitlessLED
Magic Home
MyQ
Netatmo
Overkiz
Philips Dynalite
Philips Hue
Shelly
SmartThings
Somfy
Swidget
TPLink Kasa
Tuya
Twinkly
WiZ
WLED
Xiaomi Gateway (Aqara)
Xiaomi Miio
Yeelight
YoLink
Zigbee Lights
ZWave Lights
Many More
Airzone
CoolMasterNet
Daikin AC
Ecobee
Fibaro
Heatmiser
HomeKit Device
IntesisHome
KNX
NEST
Netatmo
Sonoff
Shelly
Sensibo
Many More
Kwikset
Schalge
Loqed
Ultraloq
August
Yale
ZWave Locks
Zigbee Locks
Apple TV
Android TV
Fire TV
Kaleidescape
Plex
Kodi
Google Cast
LINN
DLNA
Binary sensors are on / off triggers that are captured by the control system
Any Bluetooth Sensor
Any Zigbee Sensor
Any Zwave Sensro
Any Matter Sensor
Both Zigbee and ZWave LR adapters are USB based.
The dongles we sell are approved and tested to work with the Magic Cube Aura.
You can buy them from other sources and they will still work.
If you would like to buy or use your own make sure it is supported. Email us to support@innovo.net with model numbers.
