Re-Introducing the new 4 inch touch panel with many features and upgrades.
Native Display available for Nice, Control 4, Lutron or Rako
- Faster processor
- Better resolution
- Fully compatible with the latest Nice, Control 4, Lutron and Rako systems.
- Native apps
- New fully admin tool to help setup
- WiFi (Coming Soon) or POE
- 100-240 50/60 VAC
Don’t Forget to add the 2Gang Wall Adapter Available Here.

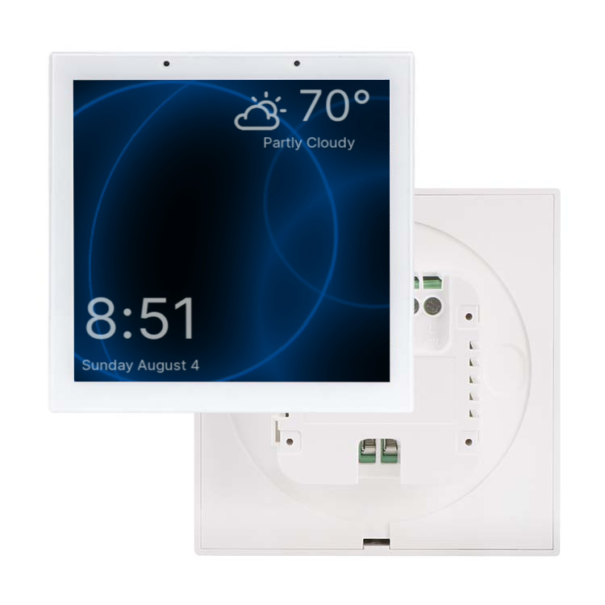

Say hello to the impressive new 4 Inch Touch Panel designed for Nice, Control 4, Lutron, or Rako systems. This touch panel seamlessly connects to the control systems controller and boasts support for most, if not all, app functionalities.
It’s not just elegant, but also highly responsive, designed by installers for installers. Whether you prefer power over Ethernet (POE) or AC, this panel has you covered, featuring a built-in dual microphone and speaker, along with an ambient light sensor. It’s even capable of functioning as an intercom, making it ideal for small areas, bedrooms, entrances, or any space that requires a compact screen.
Rest assured, this top-notch device is curated, customized, imported, sold, shipped, and fully supported by Innovo, offering a unique and specialized experience. It’s important to note that this exceptional product is not manufactured by the Nice, Control 4, Lutron or Rako corporation.
Spec Sheet is here: 4 inch Panel.
Dimensions | 86mm*86mm*37mm |
| Display Size | 4 Inch |
| CPU | Quad Core A55, 1.8Ghz |
| Resolution | 480*480 |
| Touch Panel | 5 Points Capacitive Touch Panel, IPS |
Network | |
| WiFi | 802.11b/g/n |
| Ethernet | 10M/100M with POE |
I/O Ports | |
| RJ45 | 10M/100M with POE |
| RS485 | 2 Pin |
Features | |
| Microphone | Dual Mic Built In |
| Speaker | Built in 1W |
| Light Sensor | Yes |
| Cooling | Fanless Air-Cooled |
Supported Media | |
| Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB |
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG |
Details | |
| Camera | No |
| Battery | No |
| Mount | In Wall with T86 Box |
| Power | POE IEEE 802.3af or Better |
| Working Temp | .5 – 70 C |
| Color | Black |
Supported Features | |
| Intercom | Yes |
| Video Conference | No |
| Warranty | 1 Year |
| Viewer Tabs | All Elan Tabs Supported (Viewer license required) |
For Canada Orders, Please reach out to our amazing distributors
Product Solution West or Product Solutions Group
For Middle East and Africa reach out to our hospitable distributors
Spec Sheet
