In Stock and Ready to Ship.

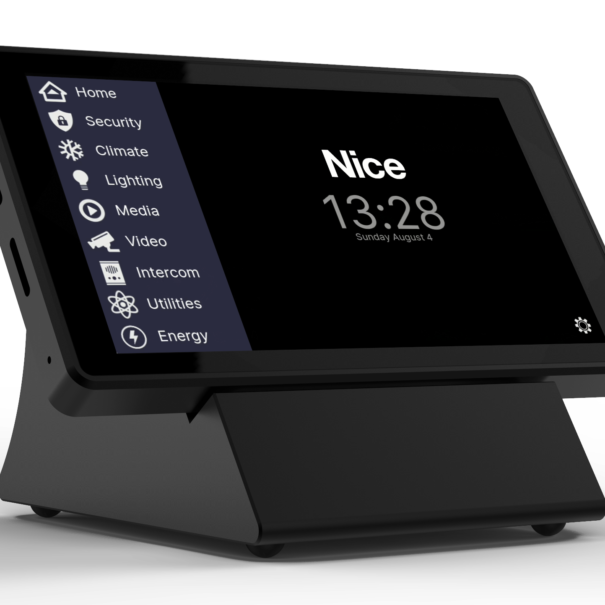

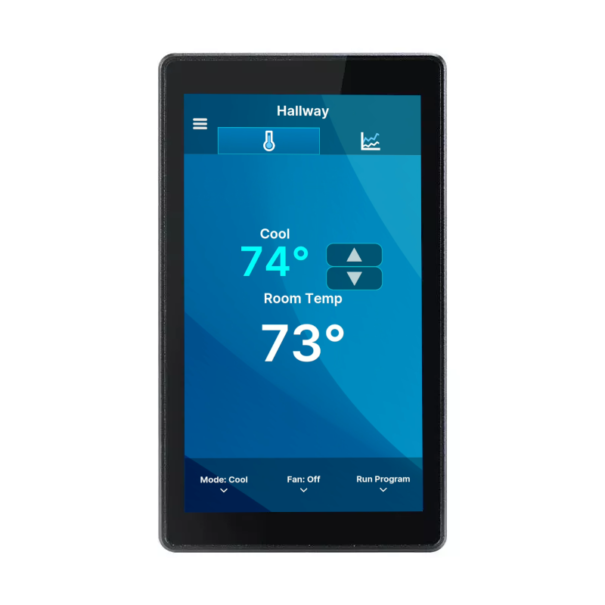

Say hello to the impressive new 5.5 Inch Touch Panel designed for Nice, Control 4, Lutron, or Rako systems. This touch panel seamlessly connects to the control systems controller and boasts support for most, if not all, app functionalities. It’s not just elegant, but also highly responsive, designed by installers for installers.
Whether you prefer power over Ethernet (POE) or DC (Coming Soon, but not yet available) , this panel has you covered, featuring a built-in dual microphone and speaker, along with an ambient light sensor. It’s even capable of functioning as an intercom, making it ideal for small areas, bedrooms, entrances, or any space that requires a compact screen.
Rest assured, this top-notch device is curated, customized, imported, sold, shipped, and fully supported by Innovo, offering a unique and specialized experience. This exceptional product is not manufactured by the Nice, Control 4, Lutron or Rako corporation.
Dimensions | 121mm*68mm active area |
Display Size | 5.5 Inch |
CPU | Quad Core A55, 1.8Ghz |
Resolution | 720 * 1280 300 Nits |
Touch Panel | 5 Points Capacitive Touch Panel, IPS |
Network | |
WiFi | 802.11b/g/n |
Ethernet | 10M/100M with POE |
I/O Ports | |
RJ45 | 10M/100M with POE |
RS485 | 2 Pin |
Power | POE Only at the Present Time |
Features | |
Microphone | Dual Mic Built In |
Speaker | Built in 1W |
Light Sensor | Yes |
Cooling | Fanless Air-Cooled |
Supported Media | |
Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB |
Audio | MP3 / WMA / WAV / AAC / FLAC / OGG |
Details | |
Camera | No |
Battery | No |

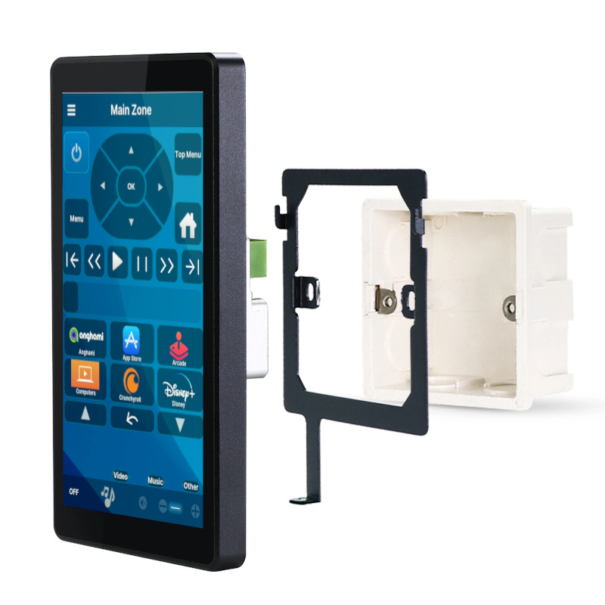

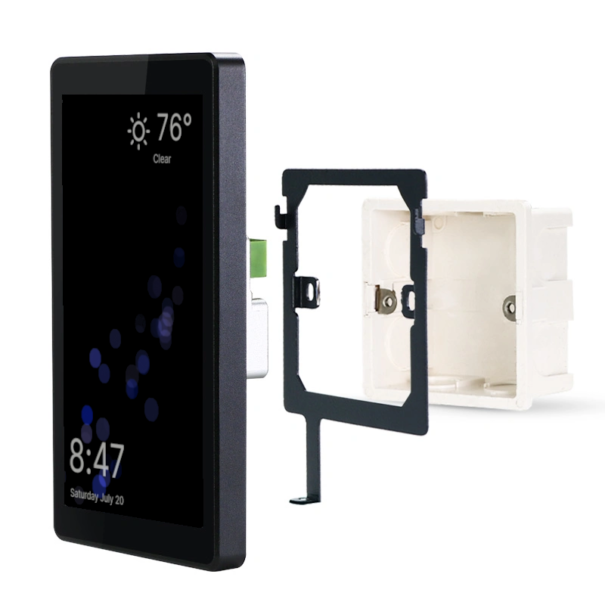

Mount | In Wall with T86 Box or Included Single Gang US Adapter |
Power | POE IEEE 802.3af or Better |
Working Temp | .5 – 70 C |
Color | Black |
Supported Features | |
Intercom | Yes |
Video Conference | No |
Warranty | 1 Year |
Viewer Tabs | All Tabs Supported (Viewer license required) |
