Upgraded for two garage operation and feedback plus option H&T sensor.

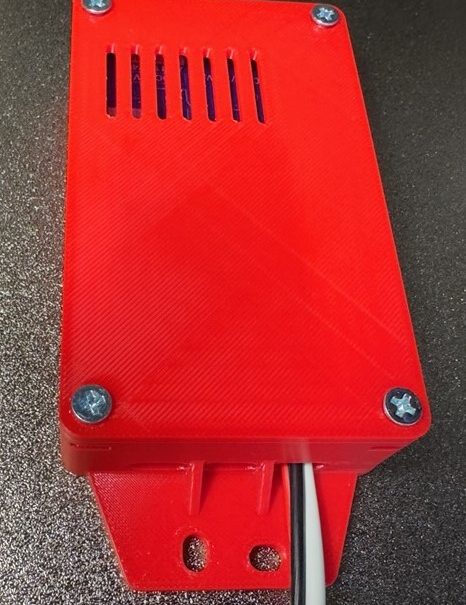

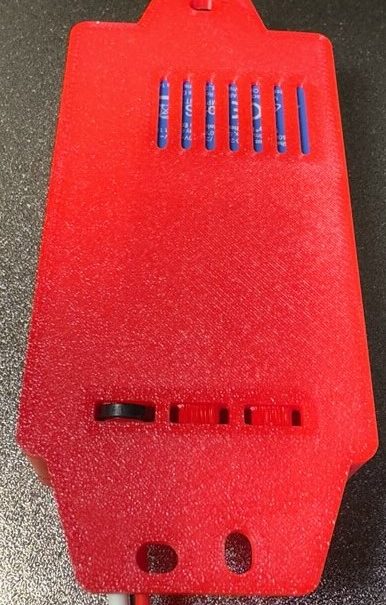

We have partnered with third party vendor to bring you a ready made garage door trigger solution that will operate a MyQ garage door. This device has a Shelly Uni Plus, Chamberlain RF remote, constant power, 12V DC power supply all in a neat fire red package with wires attached and ready to install. This connects WiFi to Nice and gives you feedback for open / close and door status with an extra connected door sensor.
The device now supports two garage doors.
This works in conjunction with our Garage Pro Driver for easy, subscription free, local controlled, no annual fee, no cloud access needed, way to open and control your MyQ (and other brands) garage doors.
Shelly Garage Door
- Works with all MyQ Doors
- No Subscription
- No Cloud access
- No Fees
- Local control
- Immediate Trigger with no delay from cloud services
- Fire Red Special release
- Supported by the Elan Driver
- Ready made
- Shelly 1 Plus Module
- RF Remote ready to pair
- 12 VDC Power Supply
- No Battery
- Mounting Case
- can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system’s component
- can control any other Wi-Fi device in your home
- temperature protection
Device electrical interfaces
Inputs
1 switch/button input on screw terminal: SW
1 potential-free contacts relay input on screw terminal: I
3 power supply inputs on screw terminals: N (+), L (Ʇ) and 12V
Outputs
1 potential-free contacts relay output on screw terminal: O
Connectivity
Wi-Fi
Bluetooth
Safety features
Overheating protection
Supported load types
Resistive (incandescent bulbs, heating devices)
Capacitive (capacitor banks, electronic equipment, motor start capacitors)
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)
User interface
Inputs
One (control) button
Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
Press and hold for 10 seconds to factory reset the Device.
Type | Value |
---|---|
Physical | |
Size (HxWxD): | 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in |
Weight: | 26 g / 0.92 oz |
Mounting: | Wall console |
Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
Shell material: | Plastic |
Color: | Blue |
Environmental | |
Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
Humidity | 30 % to 70 % RH |
Max. altitude | 2000 m / 6562 ft |
Electrical | |
Power supply: | 110 – 240 VAC / 24 – 48 VDC / 12 VDC ±10% |
Power consumption: | < 1.2 W |
Output circuits ratings | |
Max switching voltage AC: | 240 V |
Max switching voltage DC: | 30 V |
Max switching current AC: | 16 A |
Max switching current DC: | 10 A |
Sensors, meters | |
Internal-temperature sensor: | Yes |
Radio | |
RF band: | 2400 – 2495 MHz |
Max. RF power: | <20 dBm |
Wi-Fi protocol: | 802.11 b/g/n |
Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth Protocol: | 4.2 |
Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
MCU | |
CPU: | ESP32 |
Flash: | 4 MB |
Firmware capabilities | |
Schedules: | 20 |
Webhooks (URL actions): | 20 with 5 URLs per hook |
Scripting: | Yes |
MQTT: | Yes |
CoAP: | No |
