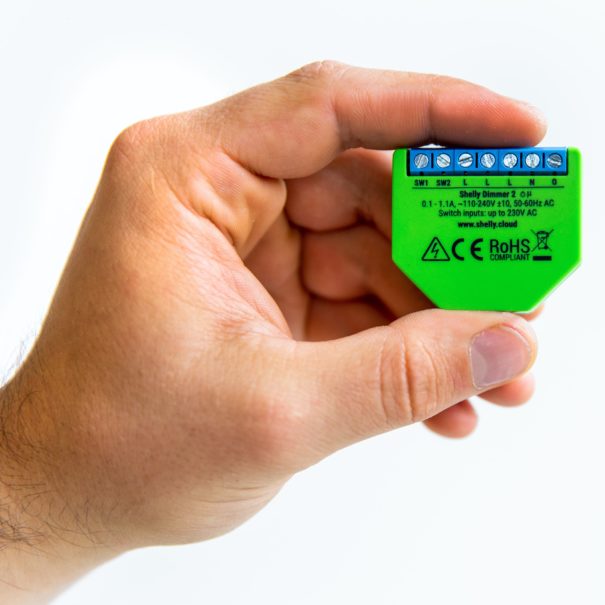

Control a wide range of halogen lights, dimmable LED and ferromagnetic transformers from anywhere with the smallest WiFi-operated dimmer in the world – Shelly Dimmer2 works without a neutral line.
Description
Specifications
Description
- Supported by the Elan Driver
- has an embedded webserver

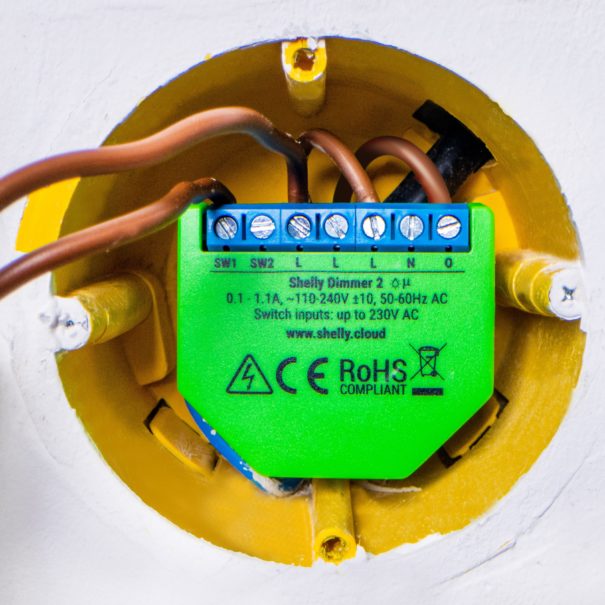

- has been designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
- can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system’s component
- overload, and temperature protection
- for multiple bulbs connected to one Dimmer 2, all bulbs need to be equal in power load and technology
Specifications
| POWER | |
| Power supply AC | 110-230V ±10%, 50/60Hz |
| SPECIAL FUNCTIONS | |
| Device temperature protection | Yes |
| Overload protection | Yes |
| Power measurement | Yes |
| Dimming | Yes |
| Dimmable LED | 50-200VA / 10W – 200W |
| Incandescent and halogen light sources | 10-220W |
| Resistive-inductive loads ferromagnetic transformers | 50-150VA |
| Working without a neutral line | Yes |
| FEATURES | |
| Colour changing | No |
| Predefined effects | Yes |
| Channels | 1 Channel |
| Operational temperature | 0°C to + 35 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 – 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| DIMENSIONS | |
| Size | 42mm x 36mm x 14 mm |
